Victron Lithium NG Smart LiFePO₄ Batteries
$3,933.80
Victron Lithium NG Smart LiFePO₄ Batteries – 12.8V / 25.6V / 51.2V
Victron's most advanced lithium battery yet. The Next Generation (NG) series builds on the proven performance of the Smart Lithium line and delivers more capacity, smarter monitoring, and better protection—all in a rugged IP65-rated case ready for off-grid, marine, and mobile installs.
Next Generation Series Highlights
- Integrated smart shunt: Read individual cell voltages and temps
- Modular scalability: Build banks up to 385kWh
- Flexible voltage options: 12V, 24V, or 48V systems
- Multiple capacity sizes: 100Ah, 150Ah, 200Ah, 300Ah
- Dust/water resistant housing: IP65 certified
- Mounting versatility: Strap and bracket options included
⚠️ Compatibility Notice
Requires: Lynx Smart BMS NG M10
Victron is adding support for VE.Bus BMS NG and SmallBMS NG. Older Smart Lithium batteries are now special order and being phased out.
Battery Specs
| Voltage / Capacity | Energy | Dimensions (H × W × D) | Weight | IP Rating |
|---|---|---|---|---|

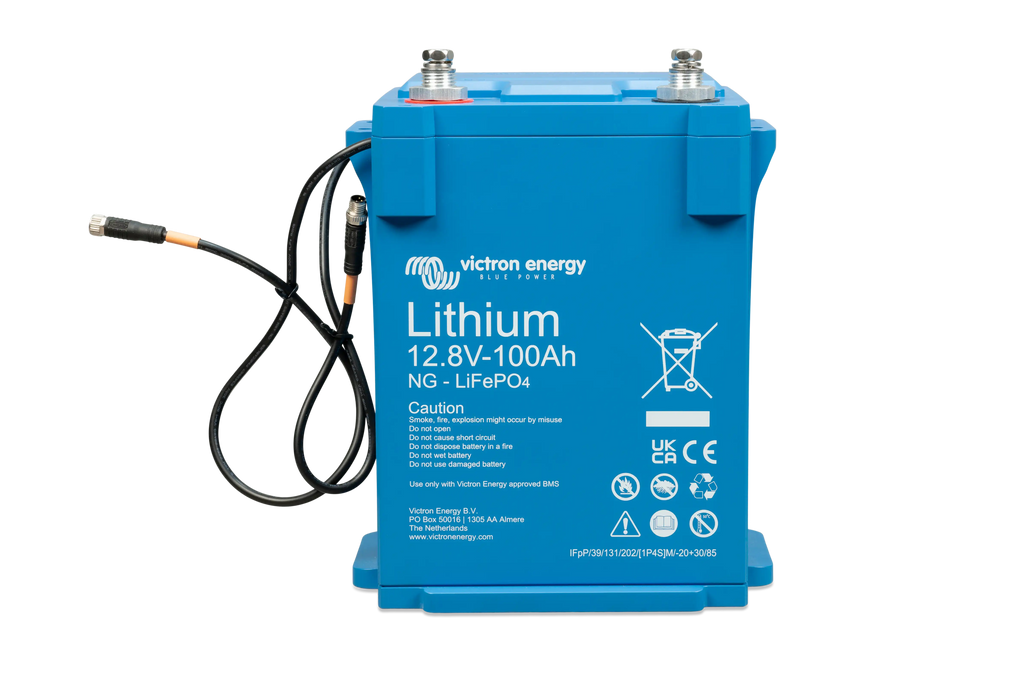

| 12.8V / 100Ah | 1.28 kWh | 9.3 × 7.8 × 6.3 in | 19.8 lbs | IP65 |

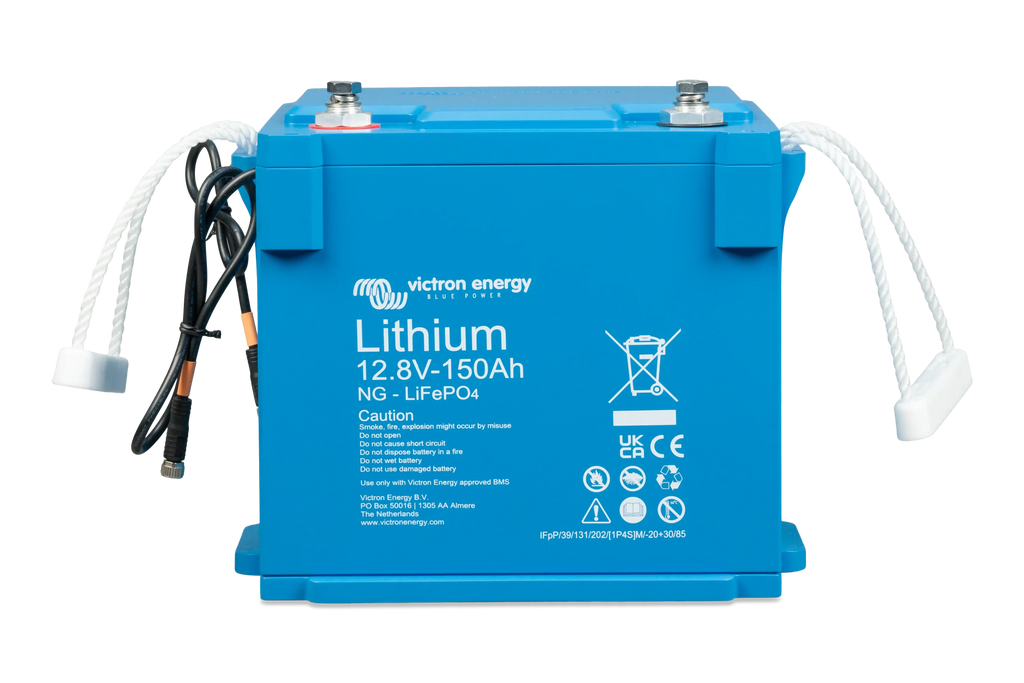

| 12.8V / 150Ah | 1.92 kWh | 8.1 × 9.8 × 8.1 in | 30.9 lbs | IP65 |

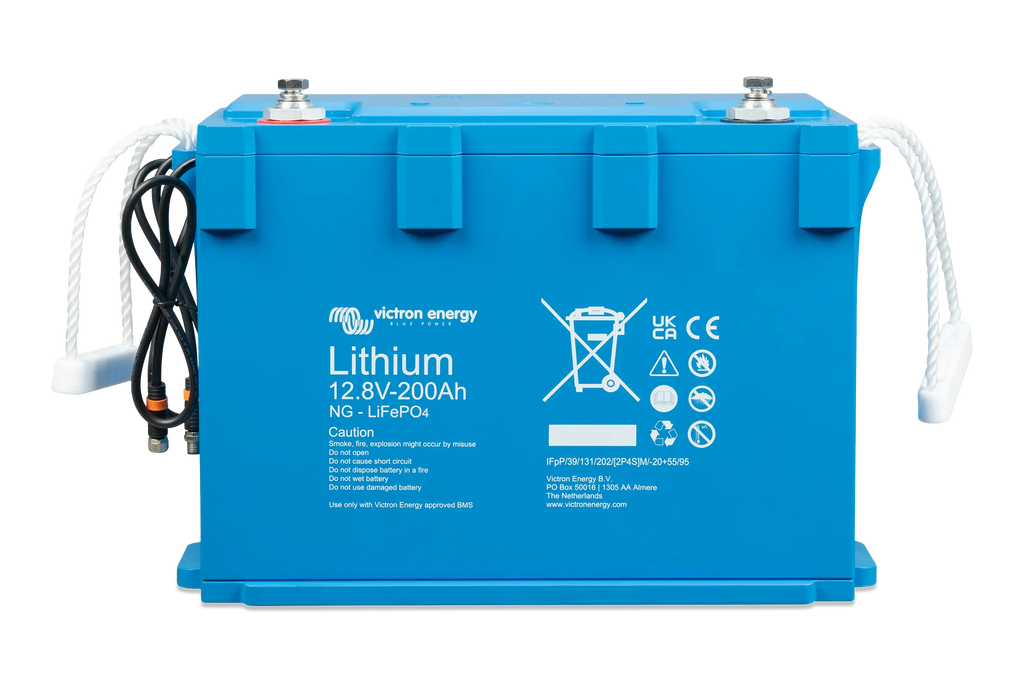

| 12.8V / 200Ah | 2.56 kWh | 9.3 × 13.4 × 6.3 in | 41.9 lbs | IP65 |

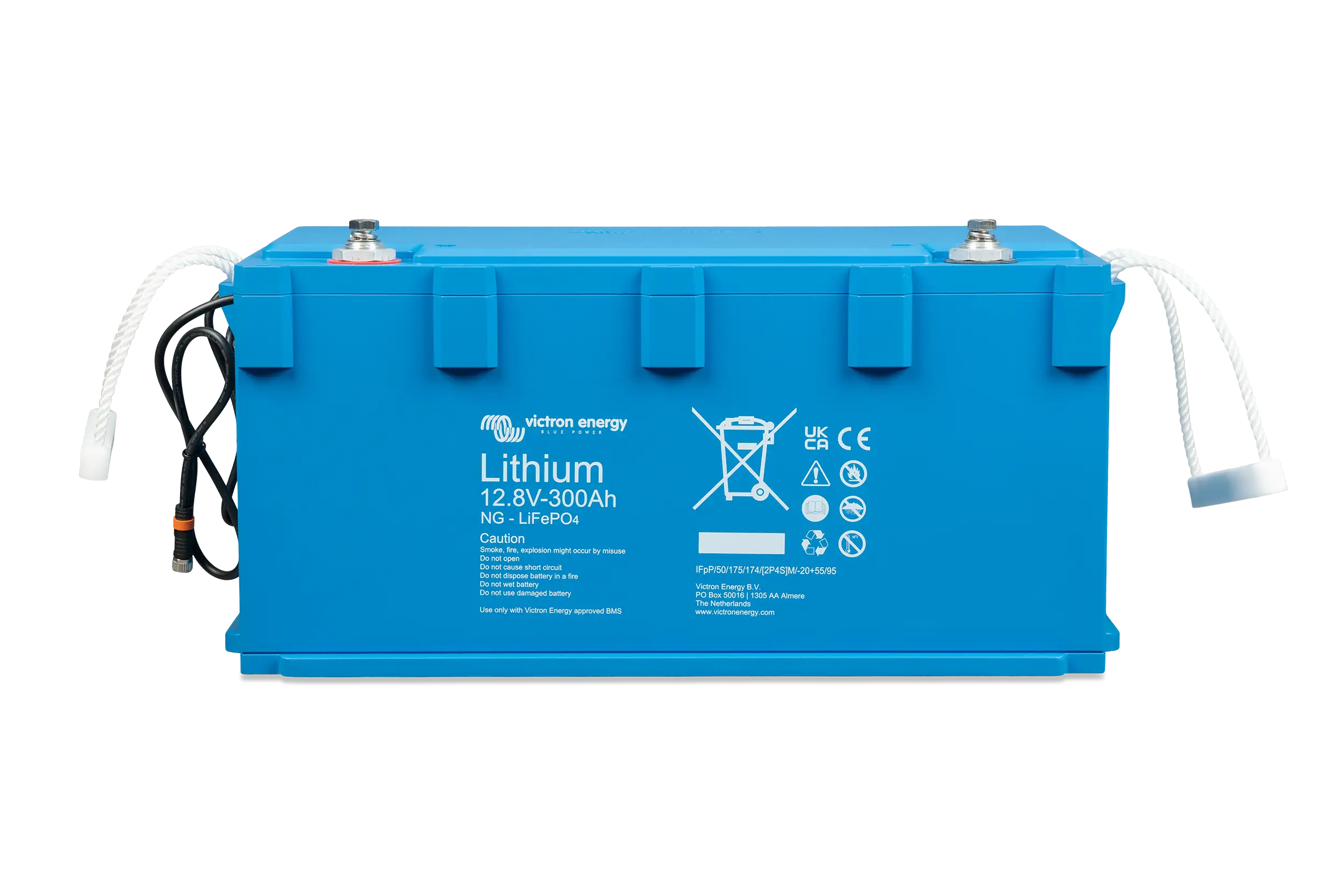

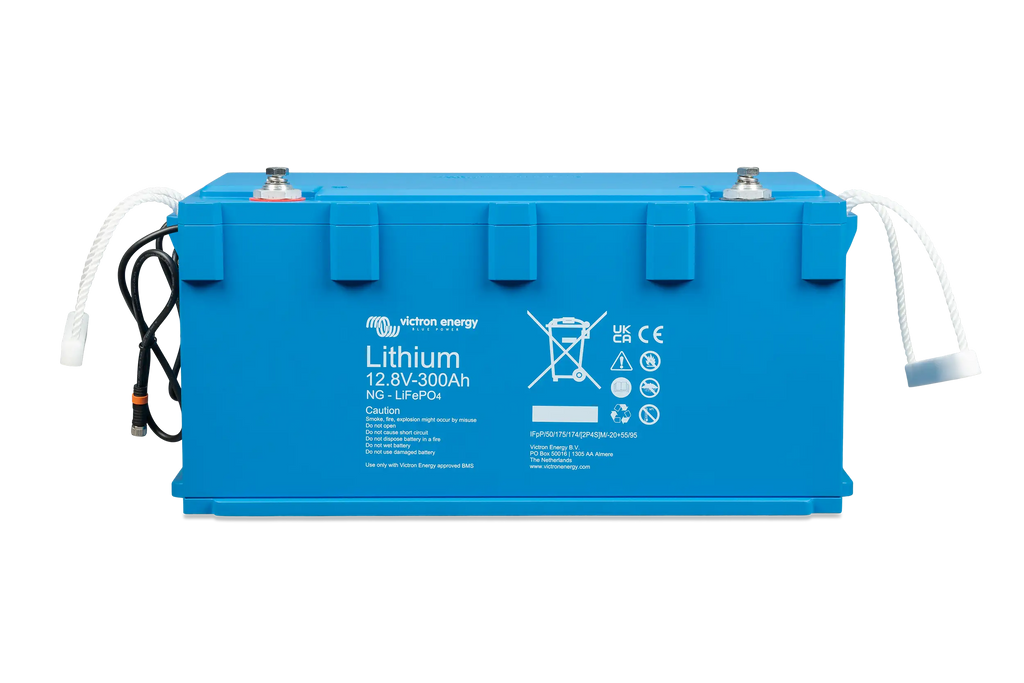

| 12.8V / 300Ah | 3.84 kWh | 8.1 × 17.6 × 8.1 in | 63.9 lbs | IP65 |

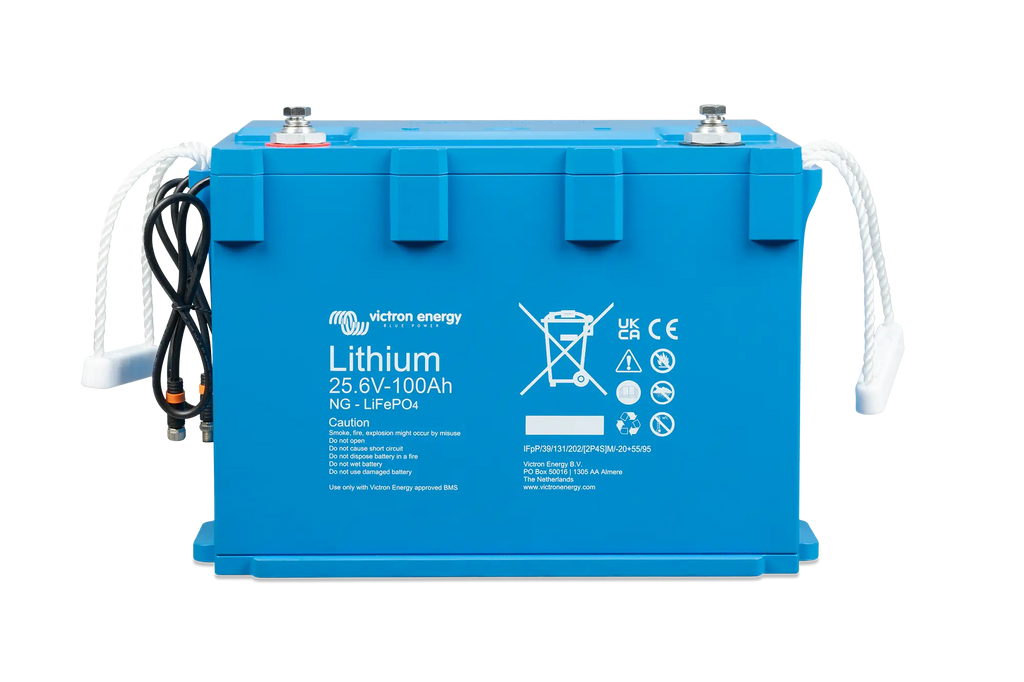

| 25.6V / 100Ah | 2.56 kWh | 9.3 × 13.4 × 6.3 in | 41.9 lbs | IP65 |
| 25.6V / 200Ah | 5.12 kWh | 9.3 × 25.5 × 6.4 in | 81.6 lbs | IP65 |

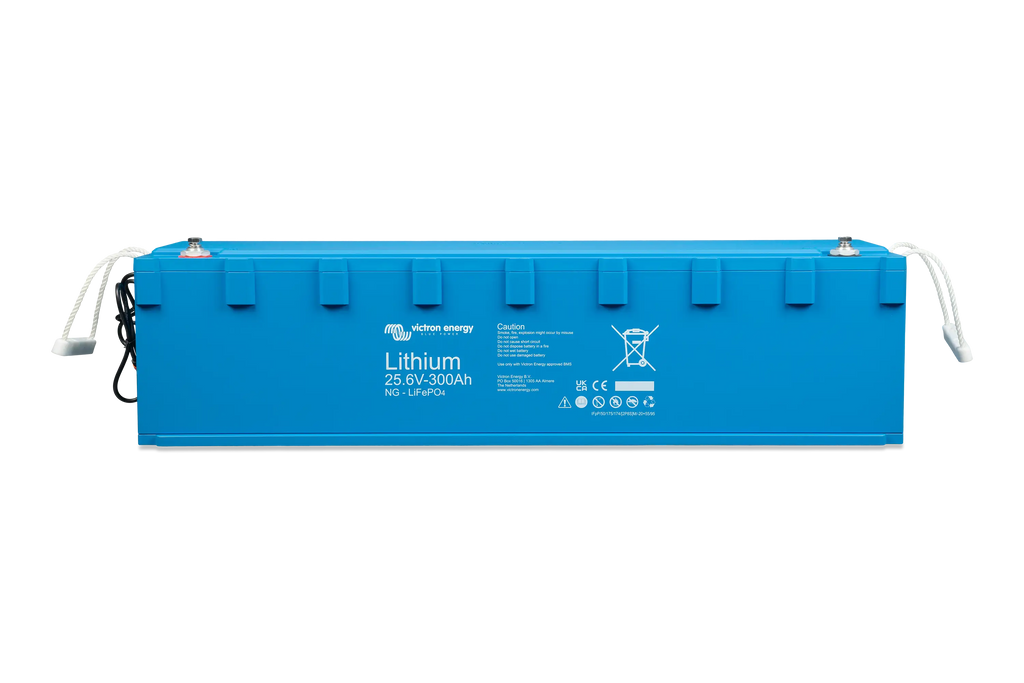

| 25.6V / 300Ah | 7.68 kWh | 8.1 × 33.1 × 8.1 in | 114.6 lbs | IP65 |
| 51.2V / 100Ah | 5.12 kWh | 9.3 × 25.5 × 6.4 in | 81.6 lbs | IP65 |
Monitoring Options
- Bluetooth via VictronConnect App
- GX Device support (e.g., Cerbo GX)
- Victron VRM Portal for remote access
Applications
- Off-grid solar systems
- Van builds and RV electrical
- Marine, sailboats, and expedition vessels
- Home backup power and battery banks
FAQ (Frequently Asked Questions) click to expand
1.Can I use this with VE.Bus BMS or SmallBMS?
Not yet. The NG series is currently only compatible with the Lynx Smart BMS NG M10. Support for other models is coming.
2.Is this replacing the old Smart Lithium batteries?
Yes. The NG line is the future of Victron's lithium offerings. Smart Lithium batteries are now special order only.
3.What’s new in the NG series?
Integrated shunt, improved diagnostics, higher max capacity, IP65 rating, and easier install options.
4.How much storage can I build with these?
Up to 50 batteries per bank. That’s up to 385kWh depending on configuration.
5.What comes in the box?
Battery module with integrated monitoring. BMS and mounting hardware sold separately.
