EcoFlow Power Kit (Gen 2) | 5kVA 48V Plug-and-Play System
Sale price
$45,976.00
Regular price
$46,775.00
The new gold standard in Van & RV electrical systems.
*Special discount on EcoFlow Gen 2 Power Kits. Use code MYSTERY25 at checkout. Limited time.
This is the latest version of EcoFlow's Power Kit, released in late 2024 and purpose-built for van & RV owners who want serious power without the hassle. The 5kVA Gen 2 Power Kit is the most advanced, compact, and easiest-to-install DIY power system on the market.
Designed to Be Simple.
Forget hours of crimping cables, sourcing breakers, and figuring out lug sizes.
This is a fully integrated, plug-and-play system designed specifically for vans, with everything labeled and ready to go out of the box. Designed with small spaces in mind, the Gen 2 Power Kits use half the space and weigh 50 pounds less than comparative solutions. It's a convenient, plug-and-play system that leaves more time for off-grid adventures.
- No DIY engineering or custom wiring required
- No programming or configuration headaches
- Over-the-air updates: Keep your system current without rewiring
- Simple DIY install: Save hundreds of hours vs. building a Victron-based system
- 5-year comprehensive warranty: Worry-free service
Powerful. Smart. Dead Simple.

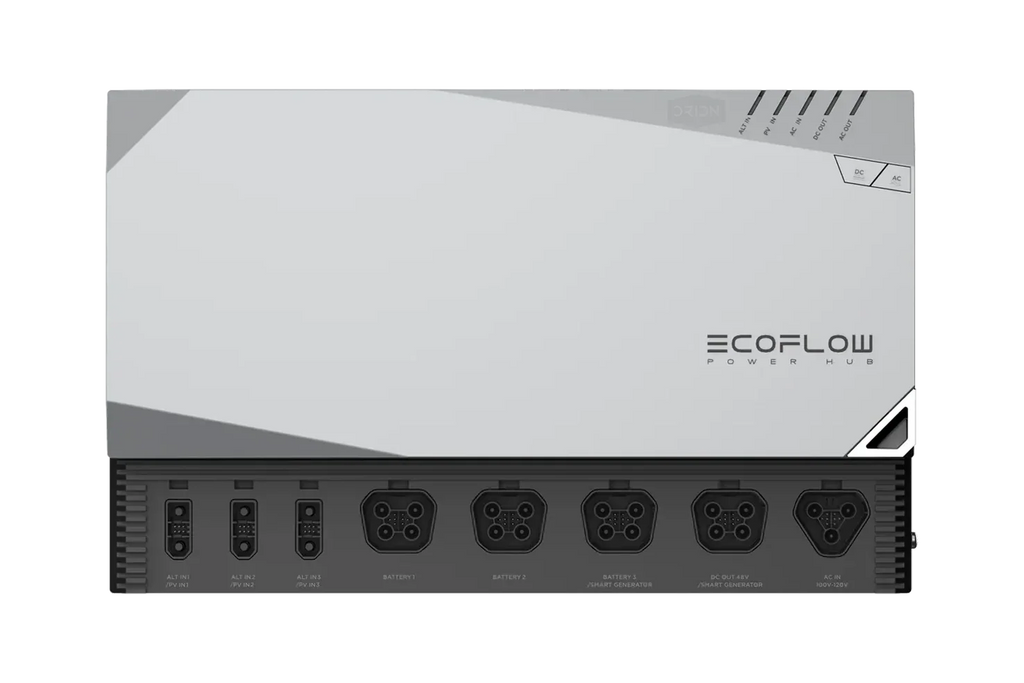

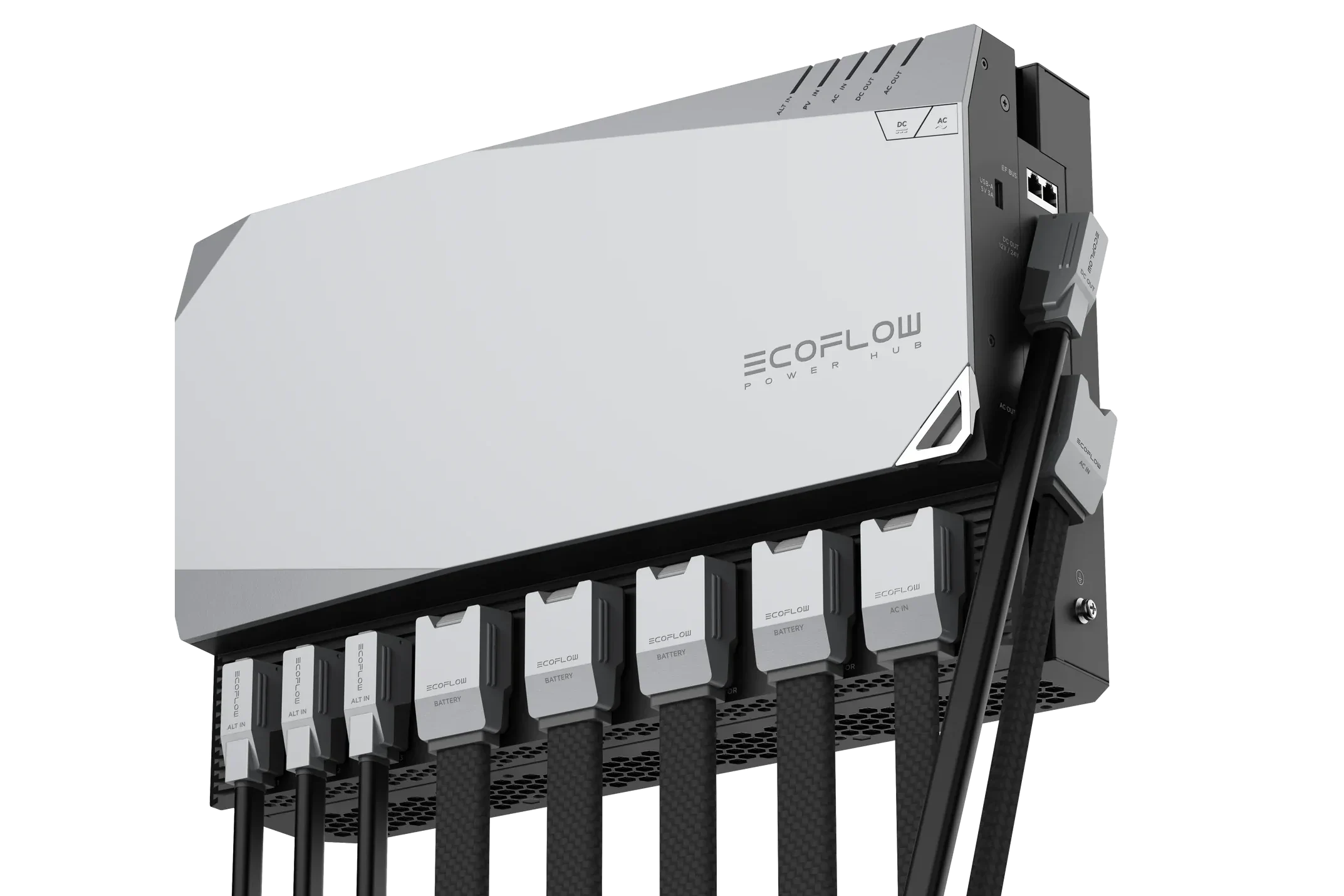

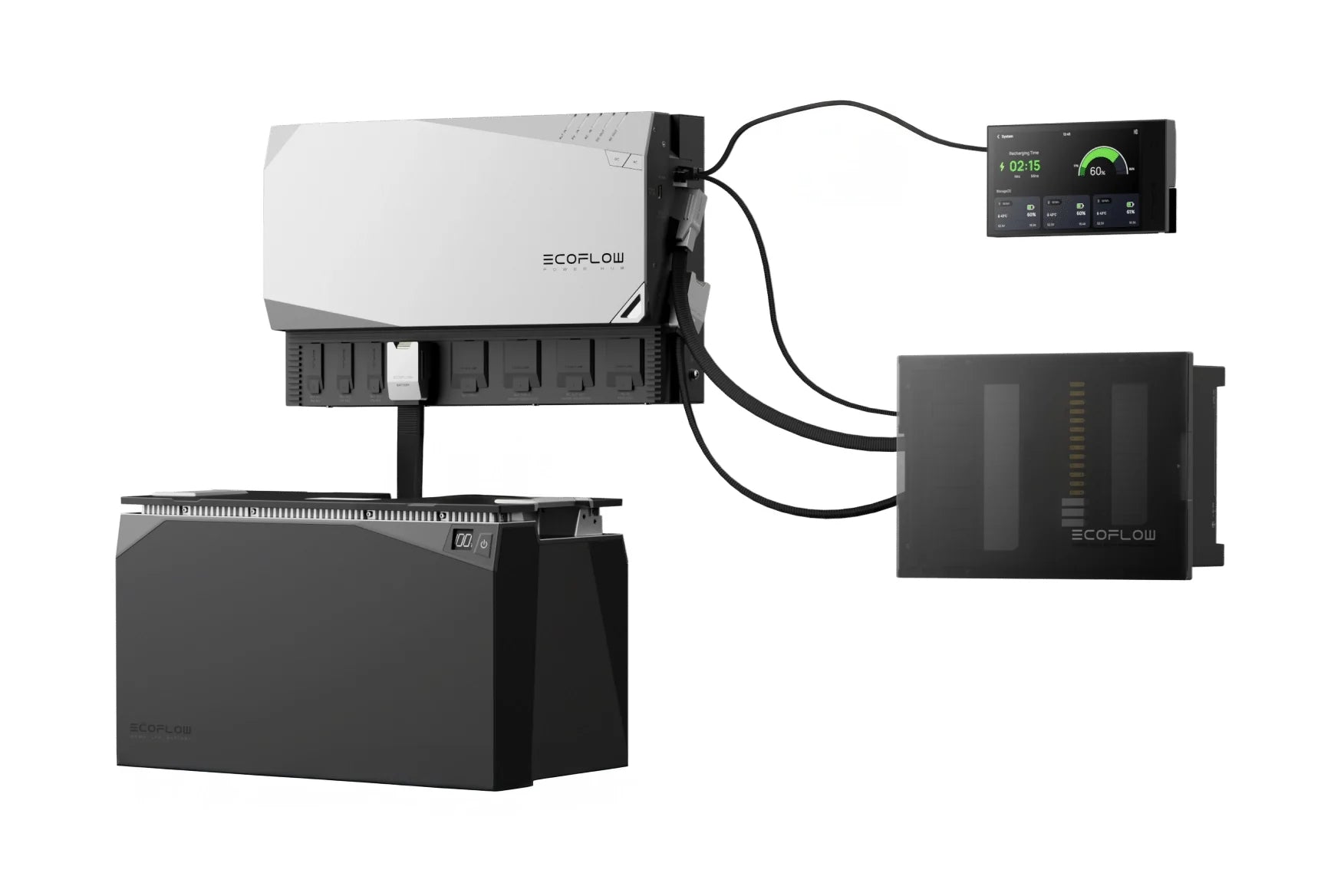

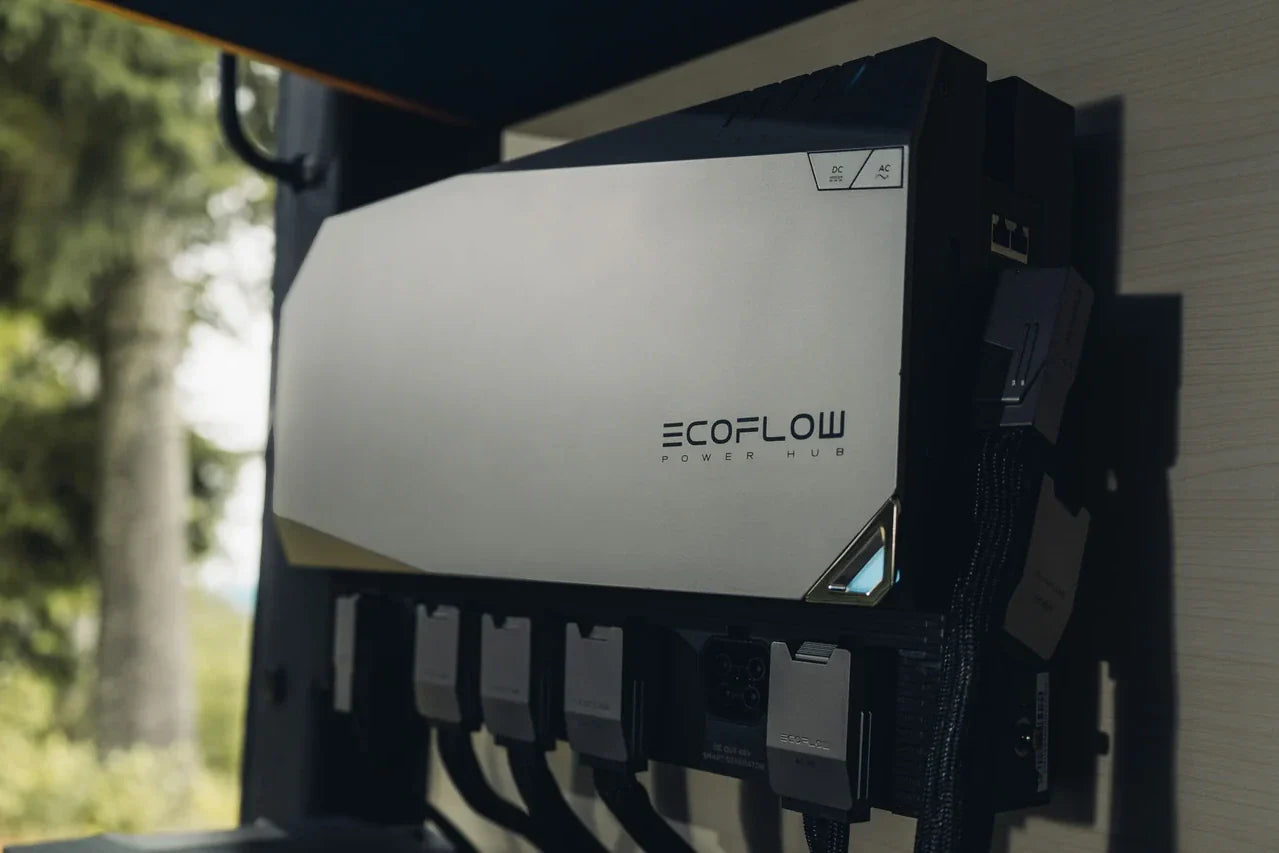

The EcoFlow Power Kit system is a fully integrated power solution engineered for vans, RVs, and marine environments. At its core is the Power Hub 5kVA, delivering up to 5000VA of power. This Power Hub combines an inverter/charger, a DC-DC battery charger with MPPT, a DC-DC step-down converter, and two MPPT solar charge controllers, eliminating the need for complex wiring or piecing together multiple components.
✔️ 5kVA Output (4000W continuous / 8000W surge): Run rooftop A/Cs, induction cooktops, or heaters. Can handle 2×13500 BTU A/Cs at same time with no soft starter.
✔️ 4 Charging Methods: Shore power, solar, alternator, and generator

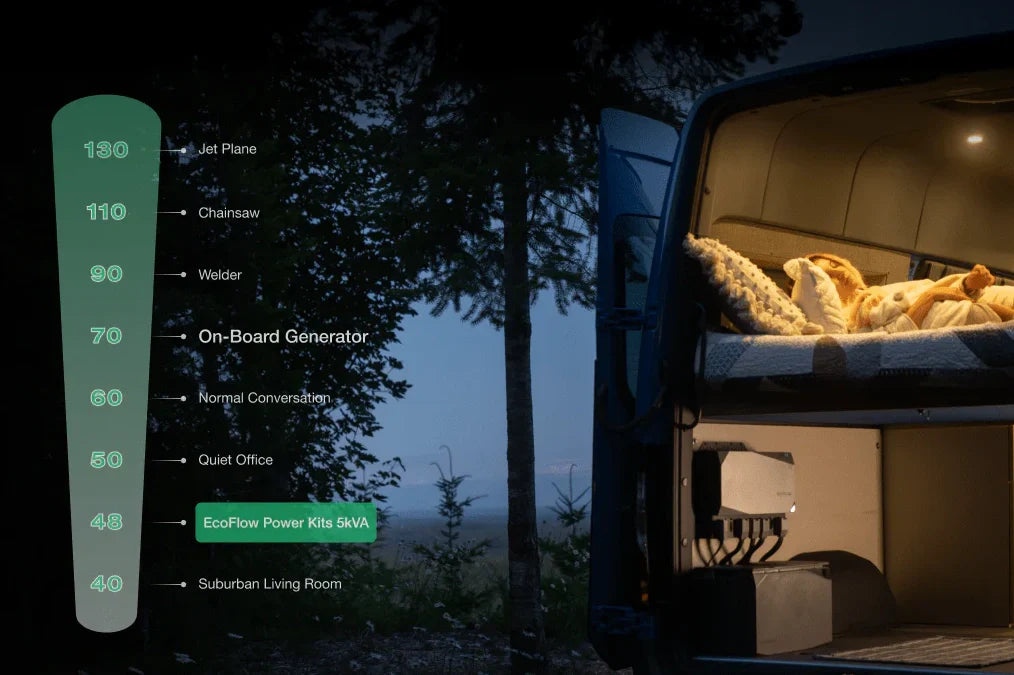

✔️ Quiet 48 dB Operation: Quieter than a typical office
✔️ Charge 11kWh in 1 hour: Using combined inputs (alternator, shore, generator)
• Charge a 5kWh battery in ~1 hour via solar**
• Charge a 5kWh battery in ~1.5 hours via shore power**
✔️ Up to 4800W Solar Input: Mix panel types with dual MPPT inputs
✔️ Dedicated 48V Output Port: Ideal for 48V A/C without needing Power Dock (up to 15kWh)
✔️ Battery Expandability: 5kWh to 45kWh capacity (mix & match sizes)

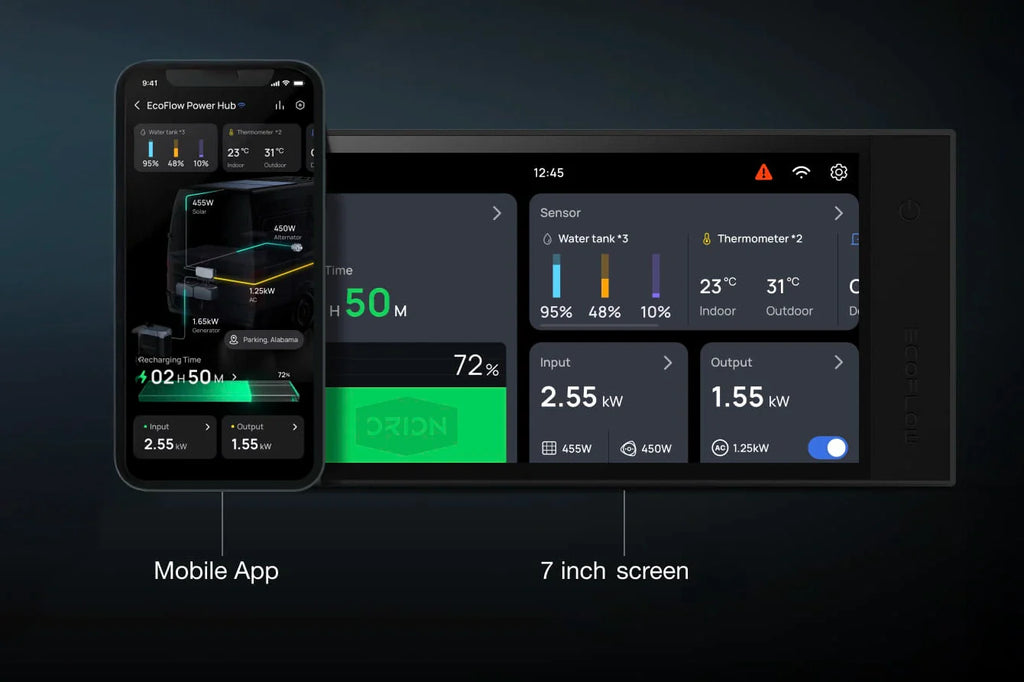

✔️ Smart Control: Manage everything from the EcoFlow app or touchscreen
Choose Your Kit & Customize

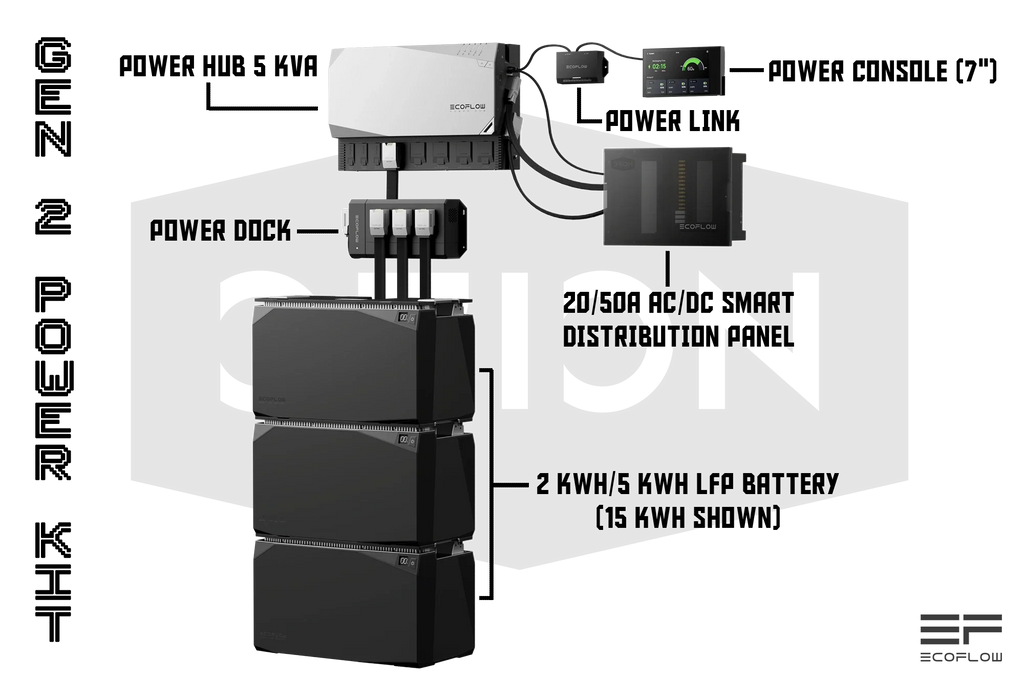

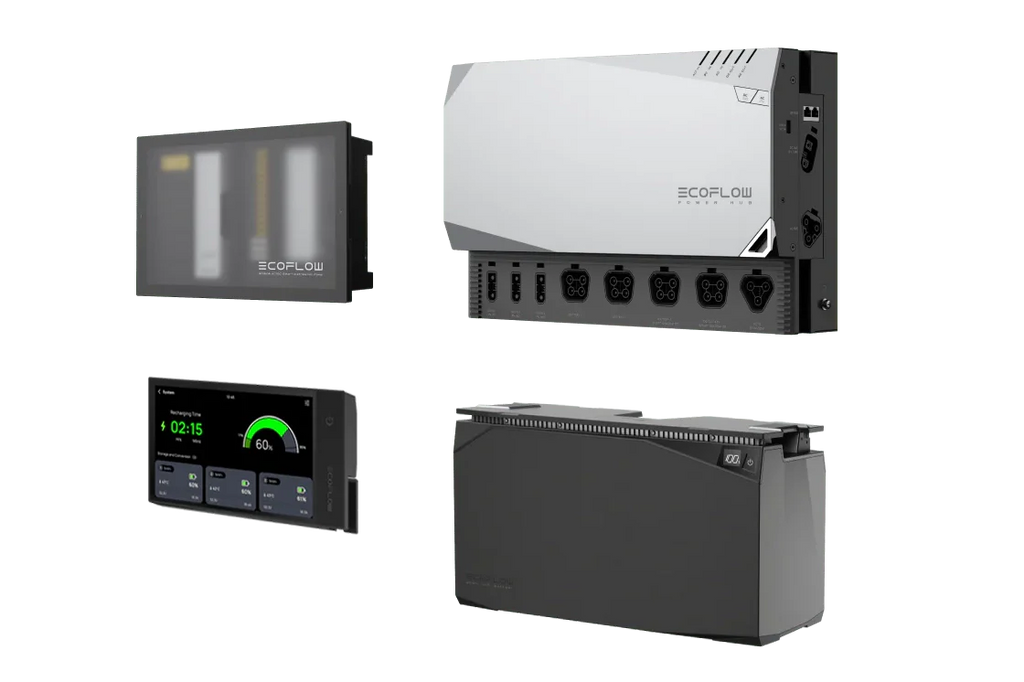

The components included depend on your selections, but all Orion kits come standard with: 1x 30A/50A Smart Distribution AC/DC Panel (Gen 2), 1x 7" Power Console (Gen 1), 1x Cable Pack, and Battery Mounting Straps.
Other sites make it difficult to understand what you actually need. We've simplified the process to help you get the right system without the confusion. You choose your total battery configuration (from 5kWh to 45kWh) and add optional accessories like the 48V A/C Cable, Power Link, Power Dock, or all three.
Please review your choices carefully, and if you're unsure what you need, contact us. We are happy to help make sure your package is perfect fit for your build.
🚐 Van Builder's Choice (15kWh)
3x 5kWh batteries, 48V A/C cable, Power Link included components.
🔥 Most Popular Setup (10kWh)
2x 5kWh batteries, 48V A/C cable, included components.
💡 Smart Starter / Weekend Warrior (5kWh)
Simple, affordable, and expandable later.

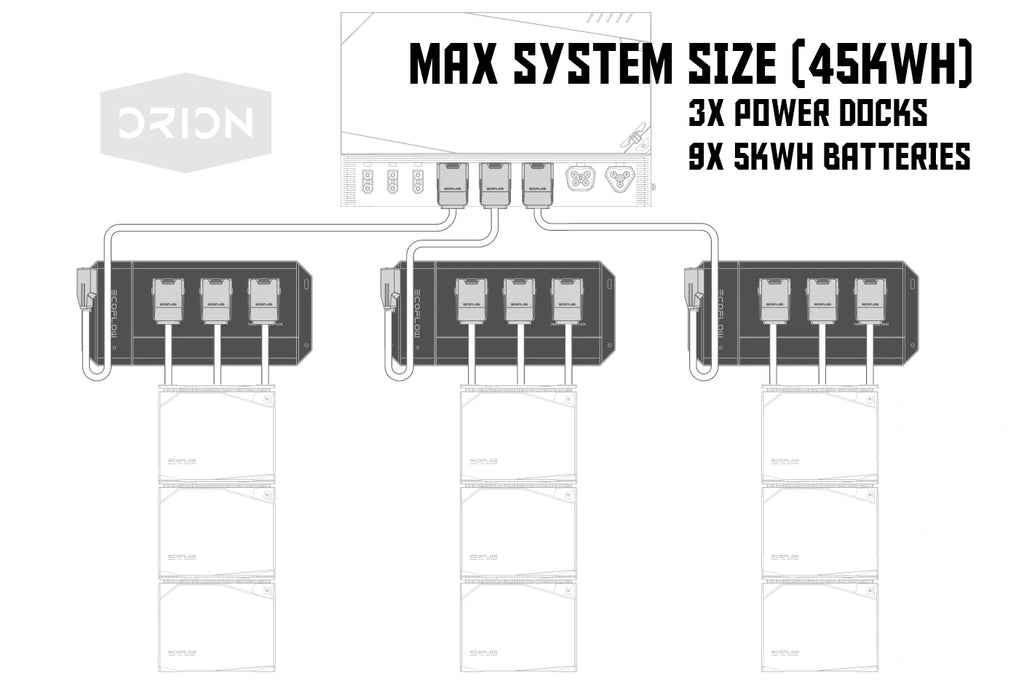

🔋 Max Power (45kWh)
9x 5kWh with 3 Power Docks and all add-ons — for full off-grid capability.
What’s New in Gen 2?
The Gen 2 Power Kit (5kVA) introduces major upgrades over Gen 1, including higher output, greater expandability, full 240V AC compatibility, and enhanced control. Below, you’ll find detailed comparison tables and specs for each component.

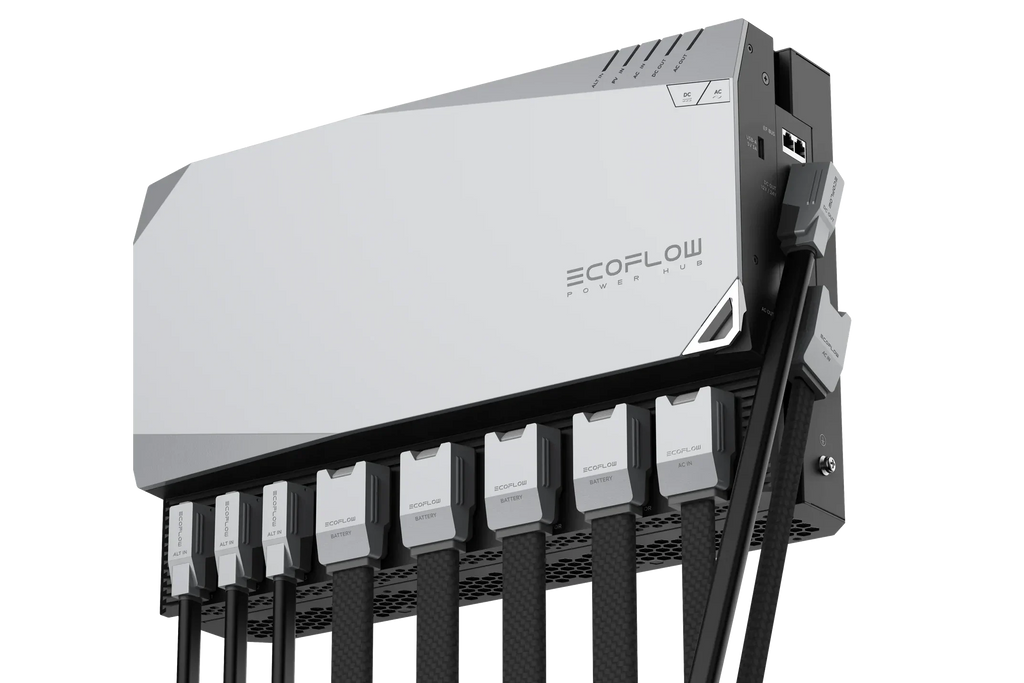

Power Hub (Gen 1 vs Gen 2)
| Feature | Gen 1 - 3.6kVa | Gen 2 - 5kVa |
|---|---|---|
| Dimensions | 18.9" × 5.5" × 11.8" | Same as Gen 1 |
| AC Output | 3600W / 7200W surge (100ms), 120V | 4000W (5000VA) / 8000W surge (100ms), 120V |
| AC Input | 30A, 120V | 50A, 120/240V split-phase |
| Solar Inputs | All Ports: 50–150V⎓30A, 1600W Max (4800W total) | Port 1: 13–60V⎓100A, 4000W Max Port 2/3: 13–60V⎓30A, 1600W Max (5600W total) |
| Alternator Input | Port 1: 13–60V⎓60A, 1600W Max (6AWG 20-foot cable) | Port 1: 13–60V⎓100A, 4000W Max Port 2/3: 13–60V⎓30A, 1600W Max ( 3AWG 20-foot cable) |
| DC Output | 13.6V⎓70A / 1000W, 26.4V⎓60A / 1600W | 13.6V⎓100A / 1300W, 26.4V⎓60A / 1600W |
| Battery Mixing | Not supported | Mix 2kWh & 5kWh |
| 48V Output | Not available | Dedicated 48V port |
| Alternator Support | Limited | Arco Zeus + 100A supported |
| Wi-Fi | 2.4G | 2.4G / 5G |
| Bluetooth | 4.0 | 5.0 |
| Charge Temp | -13°F to 140°F (–25°C to 60°C) | Same as Gen 1 |
| Weight | 31 lbs | 34 lbs |
| Certifications | CE, UL, FCC | CE, UL, FCC |

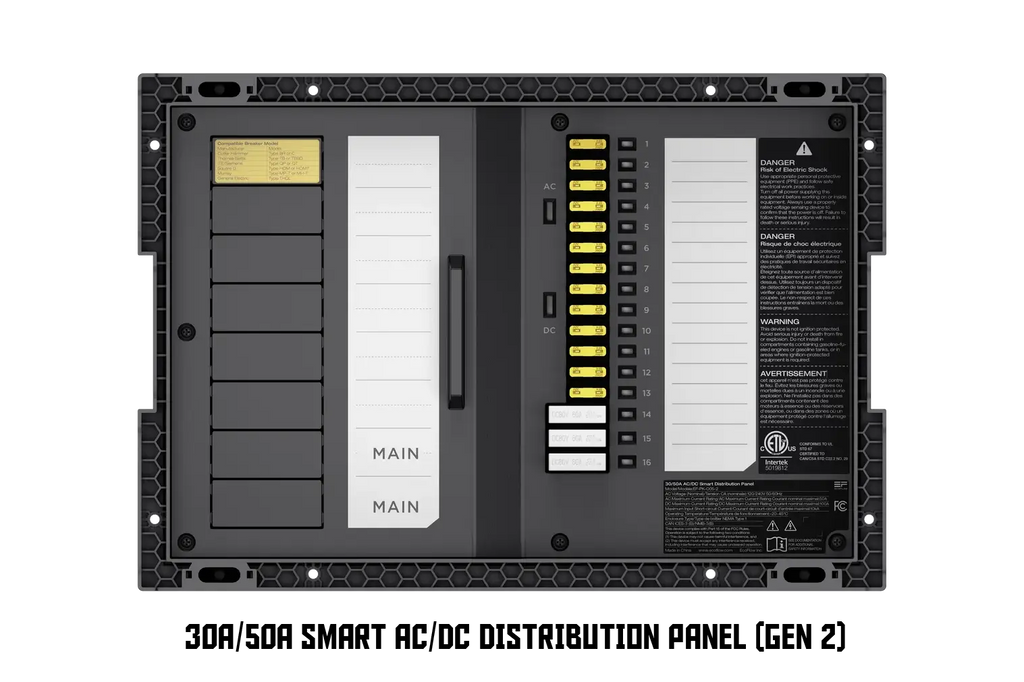

Smart AC/DC Panel (Gen 1 vs Gen 2)
| Feature | Gen 1 30A Panel | Gen 2 30A/50A Panel |
|---|---|---|
| Dimensions | 14” × 8.3” × 3.9” | 15.3” × 10.6” × 5.3” |
| DC Circuits | 12 (6 controllable) | 16 (all controllable) |
| DC Input | Max 70A, 10–30V DC | Max 100A, 13/26V DC |
| DC Output | 20A max per circuit | 30A max (F1–F13), 50A max (F14–F16) |
| AC Circuits | 6 max | 12 max branch circuits |
| AC Input | Max 30A, 120V, 60Hz | Max 50A, 120/240V, 60Hz |
| AC Output | 30A max (1/2), 20A max (3–6) | 30A max per branch |
| Compliance | Unknown | UL67, FCC Class A |
| Breakers | Proprietary ($40/per) Included | Household ($5/per) *Not included |
| Weight | 5.8 lbs | 8.8 lbs |

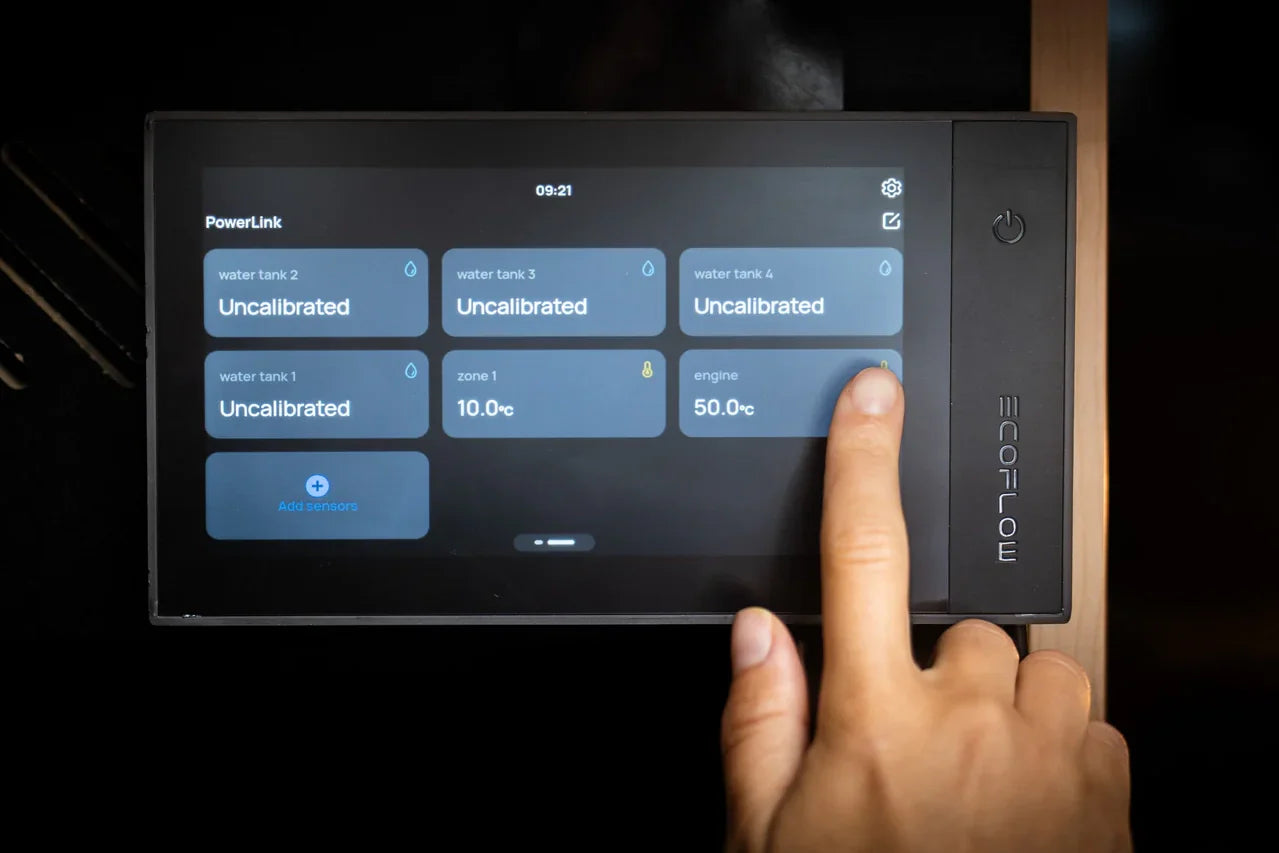

Power Kit Console (7" Monitor)
| Feature | Gen 1 Display | Gen 2 Display |
|---|---|---|
| Dimensions | 8" × 4.5" × 0.9" | Same as Gen 1 |
| Screen Size | 7" Diagonal (6" x 3.4") | Same as Gen 1 |
| Resolution | 1024 (H) × 600 (V) | Same as Gen 1 |
| DC Input | RJ45: 12V / 1A, USB-C: 5V / 2A | Same as Gen 1 |
| DC Output | USB-A: 5V / 1A | Same as Gen 1 |
| Operating Temp | -4°F to 122°F (-20°C to 50°C) | Same as Gen 1 |
| Weight | 1 lb | Same as Gen 1 |
Battery Specs (Both Gens)
| Feature | 5kWh LFP Battery | 2kWh LFP Battery |
|---|---|---|
| Dimensions | 19.7" × 10.2" × 11.8" | 13.7" × 7.8" × 11.2" |
| Capacity | 5120Wh (51.2V, 100Ah) ~427Ah at 12V |
2048Wh (51.2V, 40Ah) ~171Ah at 12V |
| Configuration | 16S1P | 16S2P |
| Cycle Life | 3500 cycles to 80% capacity | 3000 cycles to 80% capacity |
| Max Charging Current | 80A | 32A |
| Chemistry | LiFePO4 | Same as 5kWh |
| Temp Ranges | -4°F to 122°F (-20°C to 50°C) | Same as 5kWh |
| Weight | Approx 89 lbs | Approx 37 lbs |
| IP Rating | IP54 | Same as 5kWh |
| Certifications | UL, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE | Same as 5kWh |
Power Link (optional add-on)
-
Adds sensor/relay functions (water tanks, propane, heaters, etc.)
-
Enables RV-C integration & PowerInsight monitoring
- Read full details and specs here
Power Dock (optional add-on)
-
Expands capacity from 15kWh → 45kWh
-
Mix 2kWh & 5kWh batteries
-
Adds compatibility with Delta Pro & Delta 2 Max
-
Requires cable to connect to Power Hub
- Read full details and specs here

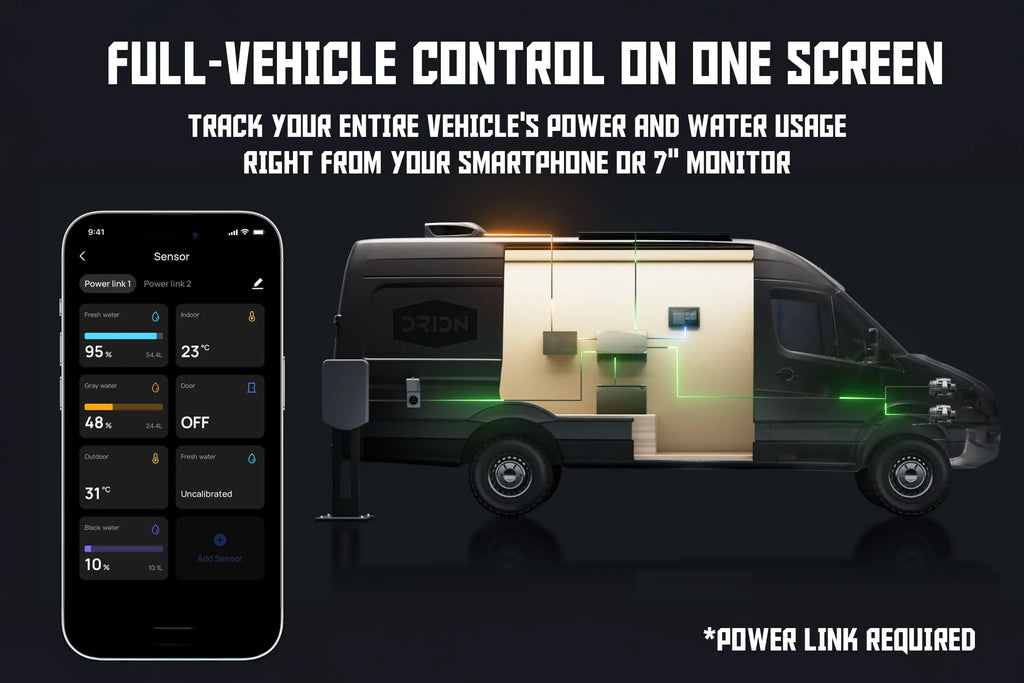

Smart Control and Remote Monitoring
Monitor every detail from your phone or on-screen:
-
Input/output power
-
Water tank levels & temps (with Power Link)
-
Generator auto-start
-
Circuit-level control
-
Vehicle charging automation
Built for Van Builders & Overlanders
-
Compact footprint saves space & weight
-
Safety Certified: UL1973-certified 48V LFP batteries, UL458-certified Power Hub and UL67-certified distribution panel
-

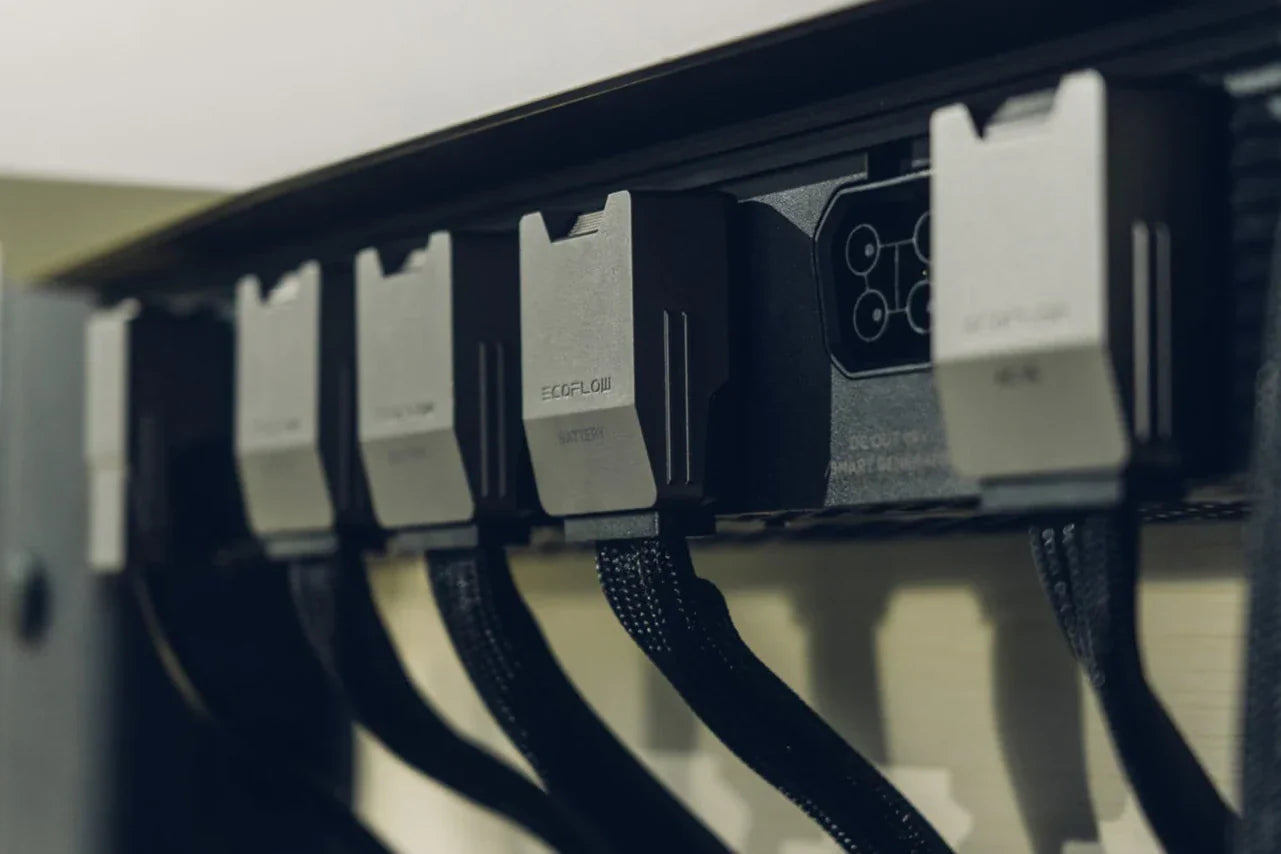

Modules are plug-and-play with labeled ports
-
Compatible with custom Orion Van Gear roof configurations an max solar
-
Built-in diagnostics, BMS, and thermal control

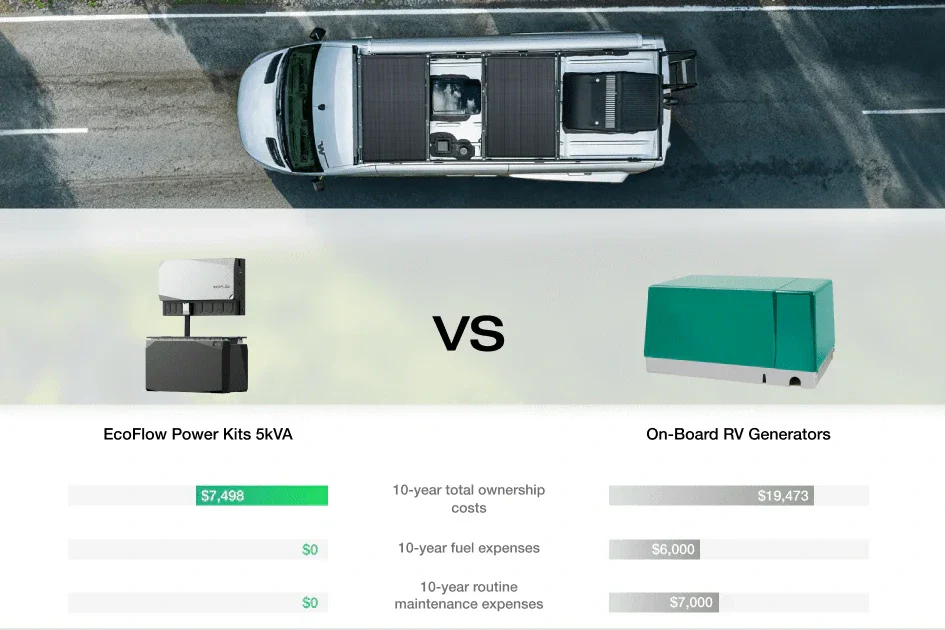

Eco-Friendly, Maintenance-Free Power
-
Zero emissions, zero fuel, zero maintenance
-
Compatible with solar, shore, alternator, and generator input
-
Reduce carbon footprint by 12,500 lbs/year
Why Buy from Orion Van Gear?
-
Dedicated USA-based support
-
Fast & free shipping
-
Get a CAD-verified layout to maximize your solar
-
Fully vetted by real van owners - Trusted with hundreds of EcoFlow Power Kit sales

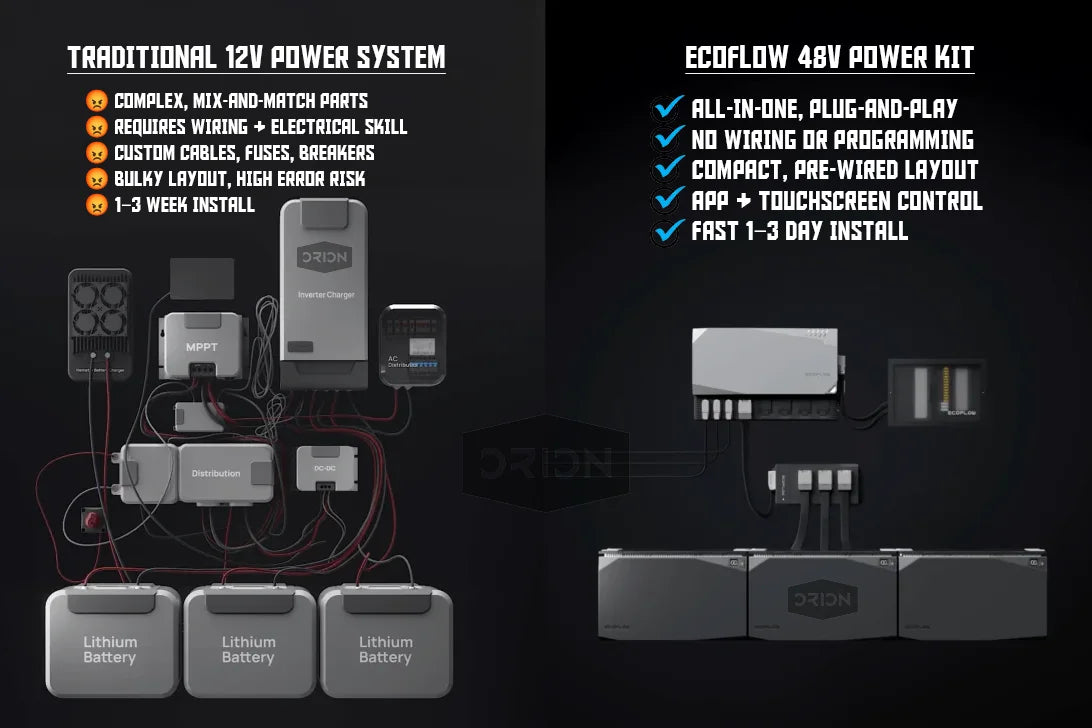

No Wires. No Guesswork. No Stress.
The EcoFlow 5kVA Power Kit is the first system to offer Victron-level power with zero DIY complexity. It’s perfect for DIYers and van builders who want reliability, performance, and simplicity without building a power system from scratch. If you have any questions, please reach out.
Resources/User Manuals
30/50A AC/DC Smart Distribution Panel - Manual
Power Hub 5kVa - Manual
Power Kit Console - Manual
LFP Battery (5kWh & 2kWh) - Manual
Power Link - Manual
Power Dock - Manual
*Requires max simultaneous input across all charging ports
**All times assume max input and ideal conditions
FAQ (Frequently Asked Questions) click to expand
1.Why choose EcoFlow over traditional DIY systems like Victron?
EcoFlow Power Kits are the easiest plug-and-play RV and van power systems available. No complex wiring, custom cables, or deep electrical knowledge required. Save hundreds of hours — EcoFlow installs in days, not weeks.
2.How long does installation usually take?
Most users install the system in 1–3 days, compared to 2+ weeks for custom DIY builds. All cables are labeled and plug directly into the modules.
3.What is included with an EcoFlow Power Kit?
Each kit includes the Power Hub, Distribution Panel, Console, cables, and depending on your selections, batteries and accessories. Contact us if unsure before purchasing.
4.Is the EcoFlow Power Kit expandable?
Yes. Systems can expand up to 45kWh of storage by adding Power Docks and batteries. You can also mix 2kWh and 5kWh batteries in one system.
5.How does EcoFlow handle solar charging?
The system includes multiple MPPT solar charge controllers, allowing you to mix panel types and wattages without loss of efficiency.
6.Can I charge while driving?
Yes. EcoFlow supports high-capacity alternator charging while the vehicle is running. Gen 2 kit includes a 3AWG 20-foot alternator cable.
7.How quiet is the EcoFlow Power Kit system?
The system operates at just 48 dB under normal load — quieter than a typical residential refrigerator.
8.Can the system automatically start my generator?
Yes. EcoFlow’s Power Link enables auto-generator start based on battery levels, controlled via the app or screen.
9.Is the EcoFlow system safe for RVs and vans?
Yes. All major components are UL-certified and the system includes advanced BMS protections for overcharging, short circuits, and overheating.
10.How does EcoFlow protect my vehicle battery?
The Power Hub automatically monitors alternator output and only charges when it detects the vehicle is running, protecting the starter battery.
11.Does EcoFlow have over-the-air updates?
Yes. Your system will automatically update via Wi-Fi, keeping it optimized with the latest features and improvements.
12.What happens if shore power is unstable?
EcoFlow’s X-Fusion technology maintains clean, stable output power even if shore input is inconsistent or weak.
13.Can the system work in extreme temperatures?
Yes. EcoFlow Power Kits are rated for -25°C to 60°C (-13°F to 140°F) and include cold-weather battery heating.
14.Is this the same as a UPS?
Not exactly. EcoFlow Power Kits have a 30ms transfer time, which is ideal for RV appliances, but not for zero-interruption UPS needs.
