165 Watt Walkable Marine Solar Panel - Maxeon Sunpower Cells
$1,014.00
165 Watt Walkable Marine Solar Panel with Maxeon Sunpower Cells
Upgrade your van with the Semi-Rigid 165 Watt Walkable Marine Solar Panel. This is our recommended panel for all Sprinter Vans with our rack and deck panels due to the dimensions of the panel. Featuring SunPower Maxeon solar cells, these panels deliver exceptional performance even in partial sun conditions.

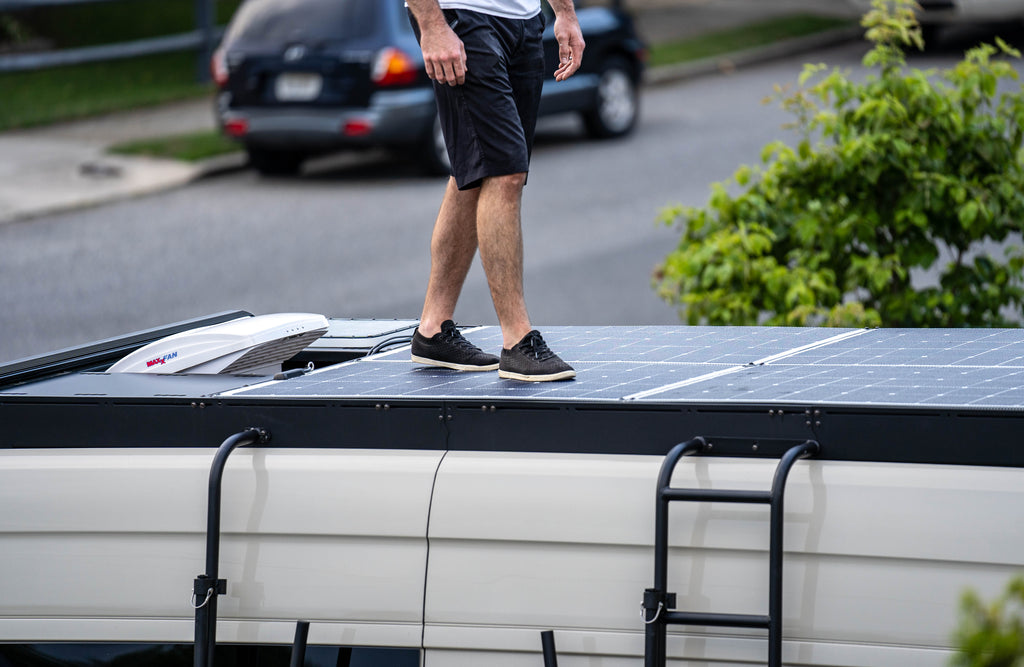

These are NOT your typical flexible solar panels! Designed with aluminum backing and ETFE laminate non-skid surface, they are engineered to be walked on without fear of damaging the solar cells. The panels are considerably lighter than rigid panels but heavier and stiffer than typical flexible panels. For maximum space utilization and functionality on your van roof, combine these walkable solar panels with Orion's modular deck panels for the ultimate solution.
Features:
- Extremely Durable
- Premium Maxeon Solar Cells
- Designed to Withstand Harsh Environments
- Lightweight at 12.8 Pounds
- Mounting Holes are located at 9/16 from each corner
- Free Shipping to the lower 48 states
- *Hardware not included - See installation section below
Specifications:
- Panel Type: Premium Maxeon Sunpower Cells
- Rated Power: 165 Watts
- Manufacturer's Warranty: 1 Year @ 80% + 4 Years Prorated
- Dimensions: 26.4" x 48" x .157"
- Weight: 15 pounds
- Output Connections: 6-foot Duplex Cable 3/8" OD
- Peak Power Voltage (Vmpp): 30.8 Volts
- Peak Power Amps (Impp): 5.4 Amps
- Open Circuit Voltage (Voc): 37.6 Volts
- Short Circuit Current (Isc): 5.8 Amps
- Cell Conversion Efficiency: 24.4%
- Maximum System Voltage: 1000v
Installation:

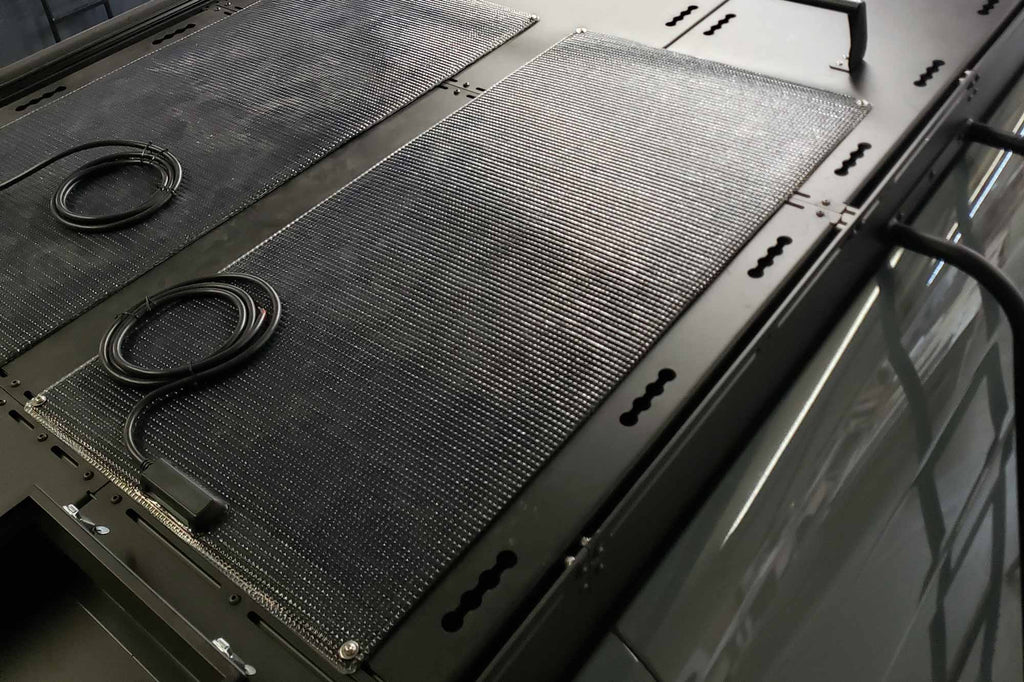

For Sprinter Stealth+ Roof Rack or Transit Stealth+ Roof Rack with Deck Panels: We recommend rivnuts (must be able to span .136" material thickness) with our Walkable Solar Mounting Washers on all 4 corners (medium threadlocker) in addition to 'J' Channels and 'H' Channels on every edge of each panel.
Contact us if you have any questions or need assistance with your installation. Explore our other Walkable Marine Solar Panels:
- 65 Watt Walkable Marine Solar Panel
-
100 Watt Walkable Marine Solar Panel
- 175 Watt Walkable Marine Solar Panel
- 200 Watt Walkable Marine Solar Panel
These panels can be paired effectively with Orion's Modular Roof Deck Panels for optimal space utilization and function on van roofs. For more details, you can check out the Modular Roof Deck Panels page.
FAQs for 165W Walkable Marine Solar Panel
1. What are the key features of the 165W walkable marine solar panel?
The 165W walkable marine solar panel features SunPower Maxeon solar cells, a durable backing, and an ETFE laminate non-skid surface. It is designed to be walked on without damaging the solar cells and is lighter than rigid panels but heavier and stiffer than typical flexible panels.
2. Are the solar panels walkable?
Yes, these panels are designed with a non-skid ETFE laminate surface and are engineered to be walked on without fear of damaging the solar cells.
3. What applications are suitable for these panels?
These panels are ideal for van roofs, especially when combined with Orion's modular deck panels for maximum space utilization and functionality.
4. What are the dimensions and weight of the 165W solar panel?
The 165W solar panel measures 26.4" x 48" and weighs 15 pounds.
5. What type of solar cells are used in the 165W panel?
The panel uses SunPower Maxeon solar cells, known for their high efficiency and performance.
6. What is the efficiency of the solar cells?
The cell conversion efficiency is 24.4%.
7. What is the warranty on the 165W walkable marine solar panel?
The manufacturer provides a 1-year warranty at 80% efficiency, plus a 4-year prorated warranty.
8. How should the panels be installed on a Sprinter or Transit van?
For Sprinter Stealth+ Roof Rack or Transit Stealth+ Roof Rack with Deck Panels: We recommend 1/4-20" Rivnuts (must be able to span .136" material thickness) with our walkable solar washers on all 4 corners. Apply medium threadlocker. We highly recommend 'J' and 'H' shaped aluminum extrusions to hold down the edges. These can be purchased separately.
9. Is hardware included with the solar panels?
No, hardware is not included. Recommendations for mounting hardware are provided in the product description. We are developing our own hardware kit that will be available soon.
10. What are the electrical specifications of the 165W solar panel?
- Rated Power: 165 Watts
- Peak Power Voltage (Vmpp): 30.8 Volts
- Peak Power Amps (Impp): 5.4 Amps
- Open Circuit Voltage (Voc): 37.6 Volts
- Short Circuit Current (Isc): 5.8 Amps
- Maximum System Voltage: 1000v
11. What makes these panels different from typical flexible solar panels?
These panels are considerably more durable with a aluminum backing and are engineered to be walked on. They are also heavier and stiffer than typical flexible panels, providing a more robust solution.
12. Do you offer free shipping?
Yes, free shipping is available for orders shipped to the lower 48 states.
13. Can these panels be paired with other products for better functionality?
Yes, these panels can be effectively paired with Orion's Modular Roof Deck Panels for optimal space utilization and function on van roofs.
14. How can I contact you for further assistance or questions?
You can contact us through our website for any questions or assistance with your installation.
15. Where can I explore more sizes and options for walkable marine solar panels?
Please visit our website to explore the full range of walkable solar panels.
